9926252015 WEIDMULLER QL-2-13-DM-KM-15.0

9926252015
CIRCUIT BREAKERS

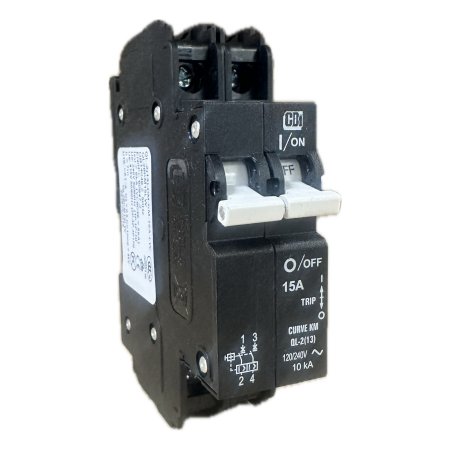

WEIDMULLER QL-2-13-DM-KM-15.0
QL SERIES HYDRAULIC-MAGNETIC MINIATURE CIRCUIT BREAKERS TWO-POLE BRANCH CIRCUIT-BREAKER
AC VOLTAGE VERSION
15 AMPS

FEATURES
• AC Circuit Breaker
• Hydraulic-Magnetic technology
• 100% rating capability, independent of ambient temperature
• One, two and three pole (UL). One, two, three pole and 1+N, 3+N (VDE)
• VDE and CCC approved, CE certified
• UL 489 Listed, CSA 22.2 certified
• Ratings 0.5A to 25A
• Optional Auxiliary Switch / Trip Alarm - factory fitted (6.5 mm wide)
• Wide range of time delays and operating currents
• Precision tripping characteristics
• Ultra compact – 13 mm wide module
• Trip indication with mid-trip handle
• Reset immediately after overload
• DIN mount product in grey shells
• Dual mount product in black shells
• Ring terminal ready (terminal screw is removable)


REPLACEMENT OPTION FOR:
P/N 2477430000
P/N 2478180000
P/N 2478920000
P/N 2479660000
P/N 2480370000
P/N 2481090000

COUNTRY OF ORIGIN: SOUTH AFRICA
HTS (SCHEDULE B): 8536200000
ECCN: EAR99

Download Data Sheet
